12 156 ₴
Monitor the limit level of bulk products stored in containers
Application area:
The DPU-10 level switch is designed to monitor the limit level of bulk products stored in containers.
Operating principle:
The fork of the sensor vibrates at its resonant frequency due to the influence of piezoelectric elements installed inside the housing. When the fork is dipped in or released from the monitored product, the amplitude of the oscillations changes, which is then detected by the controller. The controller then triggers an alarm signal and activates/deactivates the load connected to the contacts of the relay in the electronic block.
Popular market analogs:
| FineTek – SC | Nivelco – Nivoswitch |
| Vega – Vegawave | Siemens – Sitrans |
| UWT – Vibranivo | ООО «Микма» – ВС-340 |
| Specita – SP | Endress+Hauser – Soliphant |

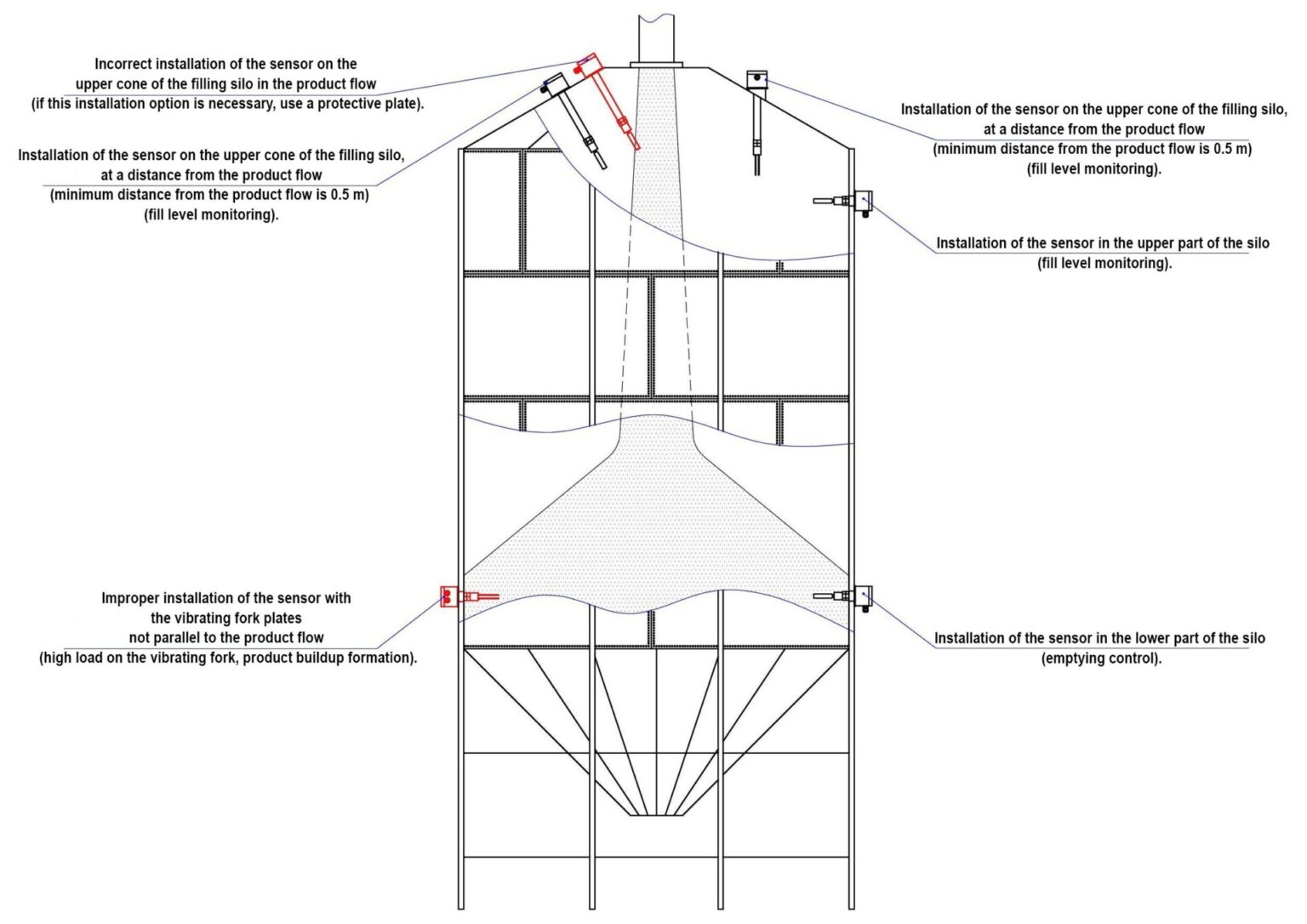

Installation:
The sensor is installed on the container’s body at the height of the monitored level. In this case, the plates of the vibration fork should be positioned parallel to the movement of the product. If it is necessary to monitor the level at a specific distance from the top of the container, an extension of the sensor’s working part is used.
| Temperature of the monitored material | from -40°C to +60°C |
|---|---|
| Working pressure | 1 atm. |
| Operating temperature range | from -40°C to +85°C |
| Weight | up to 2.5 kg |
| Material of the sensor's working part | stainless steel |
| Material of the controller's housing | steel with corrosion-resistant coating |
| Climate version according to GOST 15150-69 | УХЛ 1.1 |
| Protection rating according to GOST 14254-80 | IP 65 |
| Class of protection against electric shock | I |
| Power supply | AC voltage = 100-240V / DC voltage = 24V ±10%, current consumption = 60mA |
| Connected load | I max = 8A, U max AC = 250В, U max DC = 24В |
| Trigger mode (for loading or unloading the container) | switch on the board: |
| Trigger indication | LED activation on the board; relay contact closure |
| Trigger time | 2-3 sec. |
The company LLC "TEMIX" Ukraine, Nikolaev, has been engaged in the development and production of temperature control systems (thermometry systems) for bulk materials, particularly grains, for all types of grain storage facilities (concrete elevators, metal silos, and warehouses) for over 20 years.
