Monitoring the limit level of bulk products in containers.
Application area:
The rotary-type sensor DR-15 is designed to monitor the limit level of bulk products in containers.
Operating principle:
The motor rotates the sensor paddle at a speed of 1 rpm until the controlled product is outside its range of motion. When the product reaches the sensor’s set level, the paddle is fixed, causing the motor to move between microswitches, subsequently switching the sensor’s output contact and turning off the motor. As the product level decreases, the spring returns the motor to its initial position, the paddle is released, the motor is turned on again, and the output contact returns to its initial state.
Popular market analogues:
| FineTek – SE | Siemens – Sitrans LSP |
| Endress+Hauser – Soliswitch | Solido-500 |
| Specita – SE2 | ELF |
| Vantsu Automation – SR | Torex – ILT |

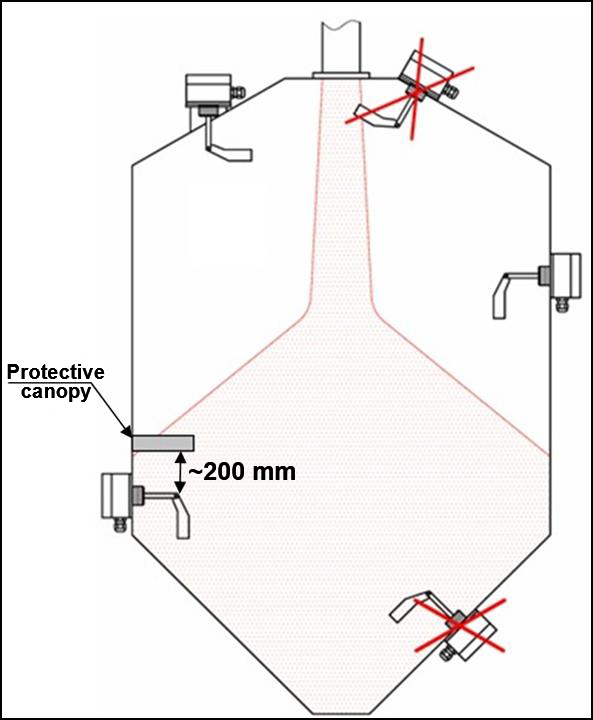

Installation:
The sensor is installed on the container’s body at the height of the monitored level. If it’s necessary to monitor the level at a certain distance from the top of the container, an extension of the sensor housing’s working part is used. It is prohibited to install the level sensor directly in the product flow.
| Temperature of the monitored material | from -25°C to +50°C |
|---|---|
| Working pressure | 1 atm. |
| Operating temperature range | from -25°C to +60°C |
| Weight | up to 1.5 kg |
| Material of the sensor's working part | stainless steel |
| Material of the controller's housing | steel with anti-corrosion coating |
| Climate version according to GOST 15150-69 | УХЛ 1.1 |
| Protection rating according to GOST 14254-80 | IP 65 |
| Class of protection against electric shock | I |
| Power supply voltage | 24V DC, 220V AC, 24V AC |
| Connected load | U AC =250V, I AC =3A |
| Trigger mode (for loading or unloading the container) | selection is made by NO / NC contact group on connector XS2 |
| Trigger time | 1-2 sec. |
The company LLC "TEMIX" Ukraine, Nikolaev, has been engaged in the development and production of temperature control systems (thermometry systems) for bulk materials, particularly grains, for all types of grain storage facilities (concrete elevators, metal silos, and warehouses) for over 20 years.
